Our manufacturing range of Chain Conveyor includes:

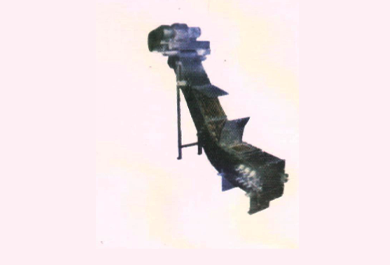

A. Drag Chain Conveyor Horizontal & Inclined
B. Wide Scraper Conveyor - Dry & Wet type
C. Slat, Bucket & other types
As per application The Drag Chain Conveyors are sturdily designed and the friction area of trough with chain & flight is provided with carbon steel / Sailma / Mn-stool liners. For Wide Scraper Conveyors two or three chains are provided to pull the Scraper bars. The return chains are supported on continuous guides. The chains are designed manufactured for long life with high factor of and safety. The shaft bearings are externally mounted with provision for thermal expansion of the shaft. The chain tensioner is self-adjusting type for Wide Scrape Conveyors where as for others it is Screw or Gravity type. Scraper bars are provided with welded/bolted friction pads where it rubs with casing liners. Sprockets are forged, machined and volume or case hardened as required.

Length: Upto 200 m

Width : Upto 10 m

Height: As required

No. of chains: One / Two / Three / Four

Chain material:20 MnCrs/Carbon Steel

Scraper Bar Liner : Sailma / Carbon Steel

Sprocket material:EN8/EN353

Shaft:EN8TEN19/EN24

Take-up:Self adjusting/Screw / Gravity

Safety Features :Shear Pin sprocket / Zero speed switch
